HMC463LH250 Low Noise Amplifier SMT w/AGC, 2 - 20 GHz
The HMC463LH250 is a GaAs MMIC PHEMT Low Noise AGC Distributed Amplifier packaged in a hermetic surface mount package which operates between 2 and 20 GHz. The amplifier provides 13 dB of gain, 3.0 dB noise figure and 18 dBm of output power at 1 dB gain compression while requiring only 60 mA from a +5V supply. An optional gate bias (Vgg2) is provided to allow Adjustable Gain Control (AGC) of 8 dB typical. Gain flatness is excellent at ±0.5 dB from 2 - 14 GHz making the HMC463LH250 ideal for EW, ECM RADAR, test equipment and High-Reliability applications. The HMC463LH250 LNA I/Os are internally matched to 50 Ohms and are internally DC blocked.
技术特性
- 50 Ohm Matched Input/Output
- Hermetic SMT Package
- Gain: 14 dB
- Noise Figure: 2.5 dB @ Mid-Band
- P1dB Output Power:
+18 dBm @ Mid-Band
- Supply Voltage: +5V @ 60 mA
- Screening to MIL-PRF-38535
(Class B or S) Available
应用领域 APPLICATION
- Telecom Infrastructure
- Microwave Radio & VSAT
- Military EW, ECM & C³I
- Test Instrumentation
- Fiber Optics
|
技术指标
| Freq. (GHz) |
Function |
Gain (dB) |
OIP3 (dBm) |
NF (dB) |
P1dB (dBm) |
Bias Supply |
Package |
| 2 - 20 |
Wideband LNA w/AGC |
14 |
28 |
2.5 |
18 |
+5V @ 60mA |
LH250 |
订购信息 Ordering Information

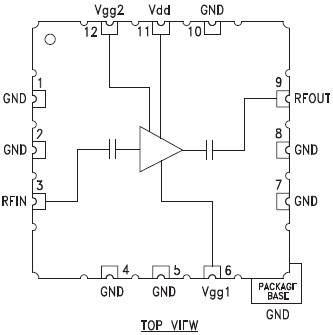

功能框图 Functional Block Diagram
|
