HMC463LP5 Low Noise Amplifier SMT w/AGC, 2 - 20 GHz

The HMC463LH250 is a GaAs MMIC PHEMT Low Noise AGC Distributed Amplifier packaged in a hermetic surface mount package which operates between 2 and 20 GHz. The amplifier provides 13 dB of gain, 3.0 dB noise figure and 18 dBm of output power at 1 dB gain compression while requiring only 60 mA from a +5V supply. An optional gate bias (Vgg2) is provided to allow Adjustable Gain Control (AGC) of 8 dB typical. Gain flatness is excellent at ±0.5 dB from 2 - 14 GHz making the HMC463LH250 ideal for EW, ECM RADAR, test equipment and High-Reliability applications. The HMC463LH250 LNA I/Os are internally matched to 50 Ohms and are internally DC blocked.

技术特性
  • 50 Ohm Matched Input/Output
  • Hermetic SMT Package
  • Gain: 14 dB
  • Noise Figure: 2.5 dB @ Mid-Band
  • P1dB Output Power:
         +18 dBm @ Mid-Band
  • Supply Voltage: +5V @ 60 mA
  • Screening to MIL-PRF-38535
         (Class B or S) Available
应用领域 APPLICATION
  • Telecom Infrastructure
  • Microwave Radio & VSAT
  • Military EW, ECM & C³I
  • Test Instrumentation
  • Fiber Optics
技术指标
Freq. (GHz) Function Gain (dB) OIP3 (dBm) NF (dB) P1dB (dBm) Bias Supply Package
2 - 20 Wideband LNA w/AGC 14 28 2.5 18 +5V @ 60mA LH250
订购信息 Ordering Information
  • HMC463LP5

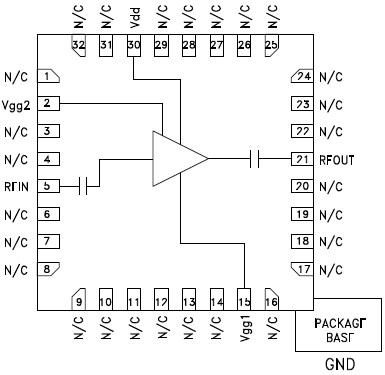

功能框图 Functional Block Diagram

HMC463LP5 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
HMC463LP5 数据资料DataSheet下载:pdf Rev.V2 2 页
