HMC517LC4 Low Noise Amplifier SMT, 17 - 26 GHz
The HMC517LC4 chip is a high dynamic range GaAs PHEMT MMIC Low Noise Amplifier (LNA) housed in a leadless “Pb free” RoHS compliant SMT package. The HMC517LC4 provides 19 dB of small signal gain, 2.5 dB of noise figure and has an output IP3 of +23 dBm. The P1dB output power of +13 dBm enables the LNA to also function as a LO driver for balanced, I/Q or image reject mixers. The HMC517LC4 allows the use of surface mount manufacturing techniques.
技术特性
- Noise Figure: 2.5 dB
- Gain: 19 dB
- OIP3: +23 dBm
- Single Supply: +3V @ 67 mA
- 50 Ohm Matched Input/Output
- RoHS Compliant 4x4 mm Package
订购信息 Ordering Information
应用领域 APPLICATION
- Point-to-Point Radios
- Point-to-Multi-Point Radios & VSAT
- Test Equipment and Sensors
- Military
|
技术指标
| Freq. (GHz) |
Function |
Gain (dB) |
OIP3 (dBm) |
NF (dB) |
P1dB (dBm) |
Bias Supply |
Package |
| 17 - 26 |
Low Noise |
19 |
23 |
2.5 |
13 |
+3V @ 67mA |
LC4 |

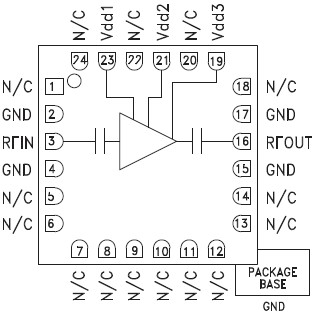

功能框图 Functional Block Diagram
|
