HMC634 Driver Amplifier Chip, 5 - 20 GHz

The HMC634 is a GaAs MMIC PHEMT Driver Amplifier die which operates between 5 and 20 GHz. The amplifier provides up to 22 dB of gain, +31 dBm Output IP3, and up to +23 dBm of output power at 1 dB gain compression, while requiring 180 mA from a +5V supply. The HMC634 is an ideal driver amplifier for microwave radio applications from 5 to 20 GHz, and may be biased at +5V, 130 mA to provide 2 dB lower gain with improved PAE. The HMC634 amplifier I/O’s are DC blocked and internally matched to 50 Ohms facilitating easy integration into Multi-Chip-Modules (MCMs). All data is taken with die connected at input and output RF ports via one 1 mil wedge bond with minimal length of 0.31 mm (12 mils).

技术特性
  • Gain: 22 dB
  • P1dB: +23 dBm
  • Output IP3: +31 dBm
  • Saturated Power: 24 dBm @ 23% PAE
  • Supply Voltage: +5 V @ 180 mA
  • 50 Ohm Matched Input/Output
  • Die Size: 2.07 x 0.97 x 0.10 mm
订购信息 Ordering Information
  • HMC634
应用领域 APPLICATION
  • Point-to-Point Radios
  • Point- to-Multi-Point Radios & VSAT
  • LO Driver for Mixers
  • Military & Space
技术指标
Freq. (GHz) Function Gain (dB) OIP3 (dBm) NF (dB) P1dB (dBm) Bias Supply Package
5 - 20 Wideband Driver 22 31 7.5 23 +5V @ 180mA Chip

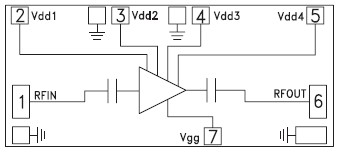

功能框图 Functional Block Diagram

HMC634 功能框图
