HMC635LC4 GaAs PHEMT MMIC Driver Amplifier, 18 - 40 GHz
The HMC635LC4 is a GaAs PHEMT MMIC Driver Amplifier die which operates between 18 and 40 GHz. The amplifier provides 18.5 dB of gain, +27 dBm Output IP3, and +22 dBm of output power at 1 dB gain compression, while requiring 280 mA from a +5V supply. Ideal as a driver amplifier for microwave radio applications, or as an LO driver for mixers operating between 18 and 40 GHz, the HMC635LC4 is capable of providing up to +23.5 dBm of saturated output power at 15% PAE. The amplifier's I/Os are DC blocked and internally matched to 50 Ohms making it ideal for integration into Multi-Chip-Modules (MCMs).
技术特性
- Gain: 18.5 dB [1]
- P1dB: +22 dBm [1]
- Output IP3: +27 dBm
- Saturated Power:
+23.5 dBm @ 15% PAE [1]
- Supply Voltage: +5V @ 280 mA
- 50 Ohm matched Input / Output
- 24 Lead Ceramic 4x4mm
SMT Package: 16mm²
应用领域 APPLICATION
- Point-to-Point Radios
- Point-to-Multi-Point Radios & VSAT
- LO Driver for Mixers
- Military & Space
|
技术指标
| Freq. (GHz) |
Function |
Gain (dB) |
OIP3 (dBm) |
NF (dB) |
P1dB (dBm) |
Bias Supply |
Package |
| 18 - 40 |
Wideband Driver |
18.5 |
27 |
7 |
22 |
+5V @ 280mA |
LC4 |
订购信息 Ordering Information

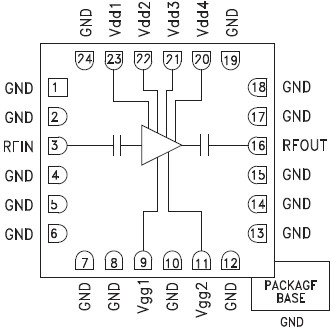

功能框图 Functional Block Diagram
|
