MGFK44A4045 14.0 – 14.5 GHz BAND / 25W

The MGFK44A4045 is an internally impedance-matched GaAs power FET especially designed for use in 14.0 – 14.5 GHz band amplifiers. The hermetically sealed metal-ceramic package guarantees high reliability.

技术特性 Features
  • Internally impedance matched
  • High output power
    P1dB=44dBm (TYP.) @f=14.0 – 14.5GHz
  • High linear power gain
    GLP=6.0dB (TYP.) @f=14.0 – 14.5GHz
应用领域 APPLICATION

For use in 14.0 – 14.5 GHz band amplifiers

订购信息 Ordering Information
  • MGFK44A4045

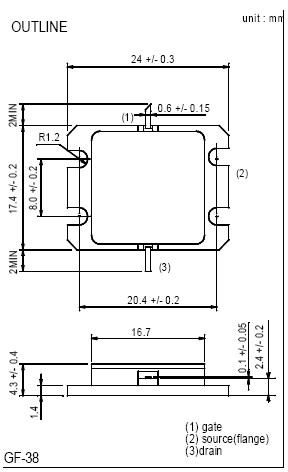

外观尺寸图 Outline Drawing

MGFK44A4045 外观尺寸图
