PM100RSD120 FLAT-BASE TYPE INSULATED PACKAGE

技术特性 Features
  1. Adopting new 4th generation planar IGBT chip, which performance
    is improved by 1μm fine rule process.
  2. Using new Diode which is designed to get soft reverse
    recovery characteristics.
  3. Keeping the package compatibility.The layout/position of both terminal pin and mounting hole is same as S-series 3rd generation IPM.
    • 3φ 100A, 1200V Current-sense IGBT for 15kHz switching
    • 50A, 1200V Current-sense regenerative brake IGBT
    • Monolithic gate drive & protection logic
    • Detection, protection & status indication circuits for overcurrent,
      short-circuit, over-temperature & under-voltage(P-Fo available from upper leg devices)
    • Acoustic noise-less 18.5/22kW class inverter application
    • UL Recognized Yellow Card No.E80276(N)File No.E80271
PM100RSD120 产品实物图

PM100RSD120 产品实物图

应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

订购信息 Ordering Information
  • PM100RSD120

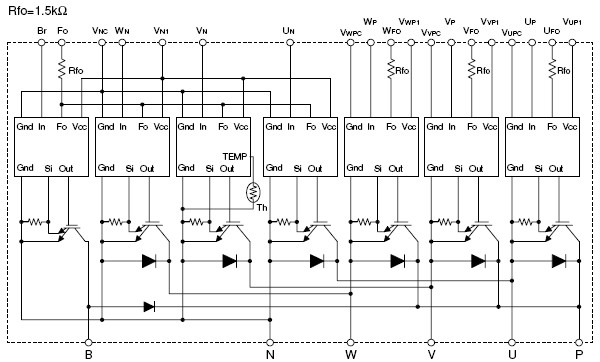

功能框图 Functional Block Diagram

PM100RSD120 功能图框

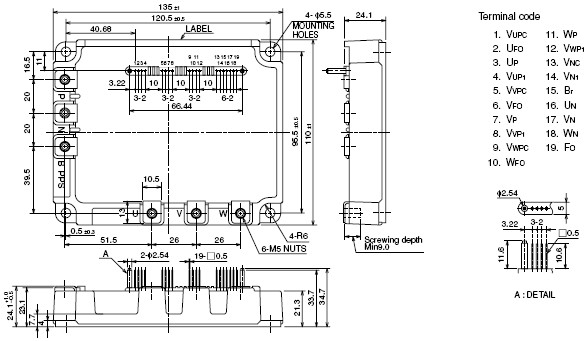

外观尺寸图 Outline Drawing

PM100RSD120 外观尺寸图


应用技术支持与电子电路设计开发资源下载 版本信息 大小
PM100RSD120 数据资料DataSheet下载:PDF Rev.V2 2 页
