PM150RLA060 FLAT-BASE TYPE INSULATED PACKAGE

技术特性 Features
  1. Adopting new 5th generation IGBT (CSTBT) chip, which
    performance is improved by 1μm fine rule process.
    For example, typical Vce(sat)=1.5V @Tj=125°C
  2. I adopt the over-temperature conservation by Tj detection of
    CSTBT chip, and error output is possible from all each conservation
    upper and lower arm of IPM.
  3. New small package
    Reduce the package size by 10%, thickness by 22% from
    S-DASH series.
  4. Current rating of brake part increased.
    50% for the current rating of inverter part.
    • 3φ 150A, 600V Current-sense IGBT type inverter
    • 75A, 600V Current-sense regenerative brake IGBT
    • Monolithic gate drive & protection logic
    • Detection, protection & status indication circuits for, shortcircuit,
      over-temperature & under-voltage (P-Fo available from upper arm devices)
    • Acoustic noise-less 15kW/18.5kW class inverter application
    • UL Recognized Yellow Card No.E80276(N)File No.E80271
PM150RLA060 产品实物图

PM150RLA060 产品实物图

订购信息 Ordering Information
  • PM150RLA060
应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

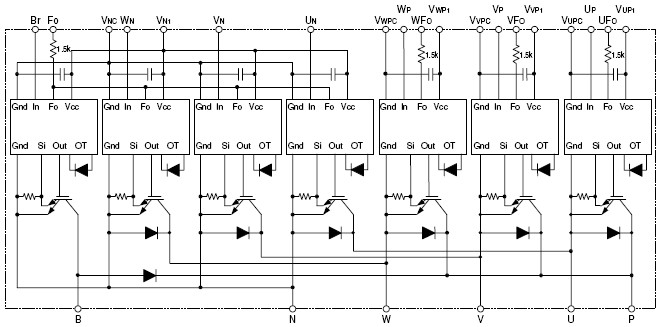

功能框图 Functional Block Diagram

PM150RLA060 功能图框

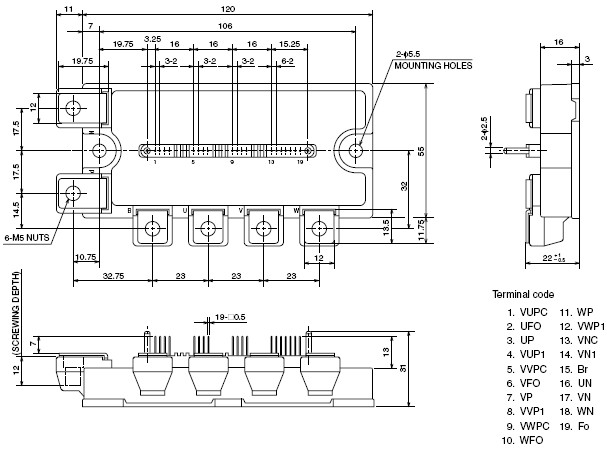

外观尺寸图 Outline Drawing

PM150RLA060 外观尺寸图


应用技术支持与电子电路设计开发资源下载 版本信息 大小
PM150RLA060 数据资料DataSheet下载:PDF Rev.V2 2 页
