PM200CLA060 FLAT-BASE TYPE INSULATED PACKAGE

技术特性 Features
  1. Adopting new 5th generation IGBT (CSTBT) chip, which
    performance is improved by 1μm fine rule process.
    For example, typical Vce(sat)=1.5V @Tj=125°C
  2. I adopt the over-temperature conservation by Tj detection of
    CSTBT chip, and error output is possible from all each conservation
    upper and lower arm of IPM.
    • 3φ 200A, 600V Current-sense IGBT type inverter
    • Monolithic gate drive & protection logic
    • Detection, protection & status indication circuits for, shortcircuit,
      over-temperature & under-voltage (P-Fo available
      from upper arm devices)
    • Acoustic noise-less 22kW class inverter application
    • UL Recognized Yellow Card No.E80276(N)File No.E80271
订购信息 Ordering Information
  • PM200CLA060

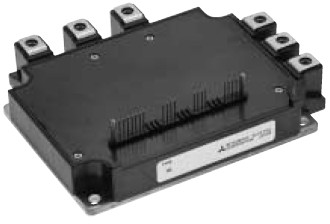

PM200CLA060 产品实物图

PM200CLA060 产品实物图

应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

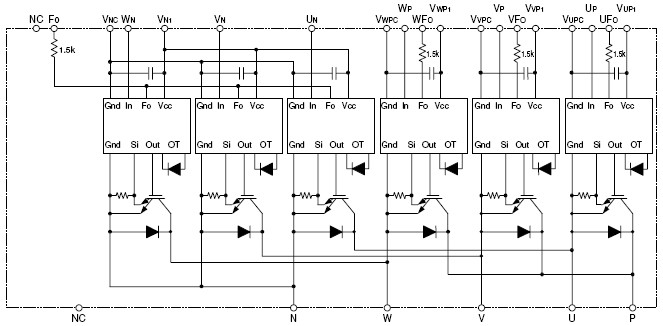

功能框图 Functional Block Diagram

PM200CLA060 功能图框

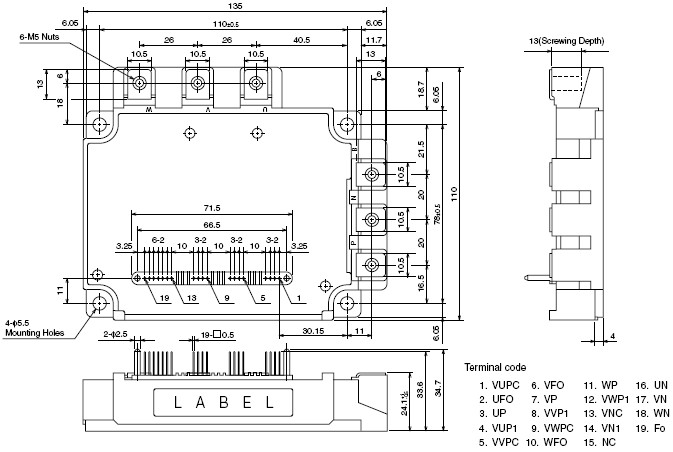

外观尺寸图 Outline Drawing

PM200CLA060 外观尺寸图


应用技术支持与电子电路设计开发资源下载 版本信息 大小
PM200CLA060 数据资料DataSheet下载:PDF Rev.V2 2 页
