PM300CSE060 FLAT-BASE TYPE INSULATED PACKAGE

技术特性 Features
  1. Adopting new 4th generation planar IGBT chip, which performance
    is improved by 1μm fine rule process.For example, typical VCE(sat)=1.7V
  2. Using new Diode which is designed to get soft reverse recovery characteristics.
    • 3φ 300A, 600V Current-sense IGBT for 15kHz switching
    • Monolithic gate drive & protection logic
    • Detection, protection & status indication circuits for overcurrent,
      short-circuit, over-temperature & under-voltage
    • Acoustic noise-less 30kW class inverter application
    • UL Recognized Yellow Card No.E80276(N) File No.E80271
订购信息 Ordering Information
  • PM300CSE060
PM300CSE060 产品实物图

PM300CSE060 产品实物图

应用领域 APPLICATION

General purpose inverter, servo drives and other motor controls

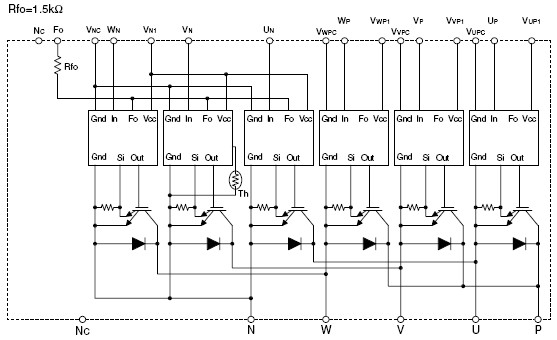

功能框图 Functional Block Diagram

PM300CSE060 功能图框

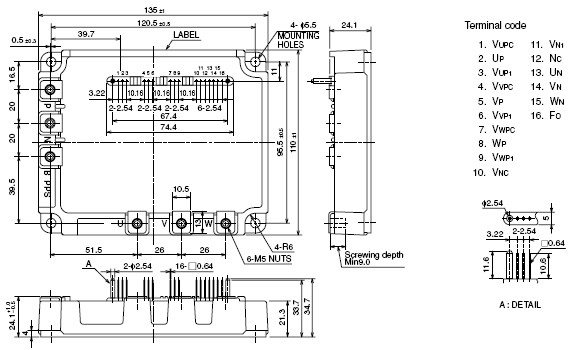

外观尺寸图 Outline Drawing

PM300CSE060 外观尺寸图


应用技术支持与电子电路设计开发资源下载 版本信息 大小
PM300CSE060 数据资料DataSheet下载:PDF Rev.V2 2 页
