技术特性 Features

• High power and High Gain:
  Pout>15W, Gp>14dB @Vdd=12.5V,f=175MHz
  Pout>15W, Gp>7dB @Vdd=12.5V,f=520MHz

• High Efficiency: 60%typ. on VHF Band

• High Efficiency: 55%typ. on UHF Band

应用领域 APPLICATION

For output stage of high power amplifiers in VHF/UHF Band mobile radio sets.

订购信息 Ordering Information

• RD15HVF1

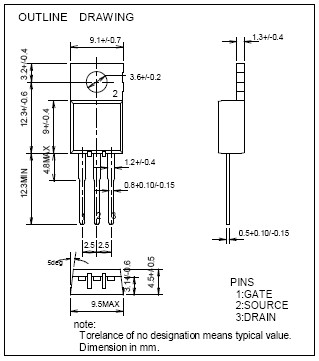

外观尺寸图 Outline Drawing
