LA0152CS:Ambient Light Sensor with Standby Function, Linear Current Output
LA0151CS is a photo IC for micro-sized illumination sensors, which has spectral response characteristics similar to the human eye. It has a linear current output type illumination (ambient light) sensor with standby function.
技术特性
- Extremely small package (1.01 x 1.01 x 0.6 mm)
- Integrated sleep mode(Max current 0.1uA)
- Low power consumption(150uA at 1,000Lux)
- Less difference in sensibility deprnding on the type of light source
- No sensibility in IR area
终端产品
- Mobile phones and tablets
- Digital still cameras
- Security cameras
|

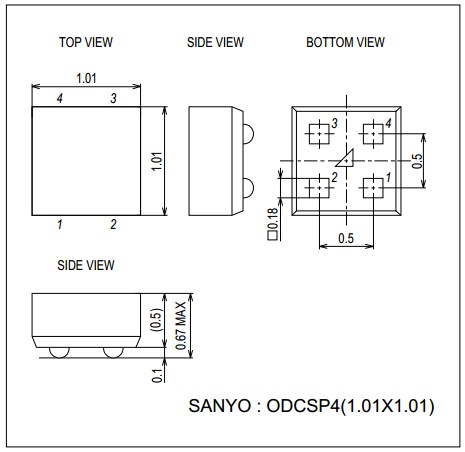

封装图 MARKING DIAGRAM
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| LA0152CS-TLM-H |
Active |
|
Ambient Light Sensor with Standby Function, Linear Current Output |
ODCSP-4 |
570AC |
3 |
Tape and Reel |
5000 |
$0.5166 |
数据资料DataSheet下载
