AAT1231 High Efficiency 1X/1.5X/2X Charge Pump for RGB Color LED Applications

The AAT1231 is a total solution controller for RGB LED fashion lighting. A simplified control scheme greatly reduces design complexity and accelerates time to market. The AAT1231 contains a high efficiency tri-mode charge pump DC/DC converter with 1X, 1.5X and 2X modes for color LED applications. Current source outputs drive two individual RGB LEDs for color displays, fashion and mood lighting. With a single-wire S2Cwire interface, an RGB LED module is easily controlled to display four distinct lighting mood effects. Low external parts count (two 1μF flying capacitors and two small bypass capacitors) and high conversion efficiency make the AAT1231 ideally suited for small battery- powered portable applications. The AAT1231 has a thermal management system to protect the device in the event of an output short circuit condition. Built-in soft-start circuitry prevents excessive inrush current during start-up. A low current shutdown feature disconnects the load from the input source and reduces quiescent current to less than 1μA.

技术特性
  • 2.7V to 5.5V Input Voltage Range
  • Compatible with Common Anode RGB LEDs
  • Four S2Cwire Controlled Lighting Moods
  • 0~60mA Programmable Current Source
  • Low Noise Constant Frequency Operation
  • No Inductors
  • Small Application Circuit
  • Regulated Output Current
  • ntegrated LED Control Switches
  • Automatic Soft-Start
  • Less than 1μA Shutdown Current
订购信息 Ordering Information
  • AAT1231



应用领域 APPLICATION
  • • Digital Still Cameras (DSCs)
  • Mobile Handsets
  • MP3 Players
  • PDAs and Notebook PCs
  • White LED Drivers

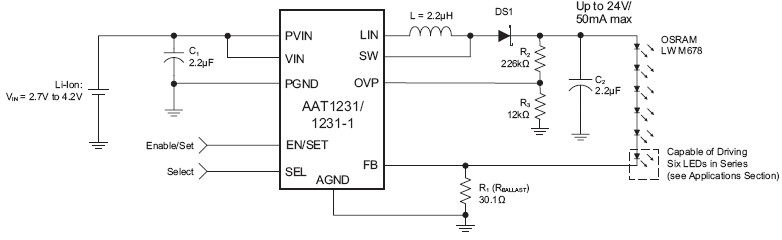

AAT1231 典型应用

AAT1231 典型应用

应用技术支持与电子电路设计开发资源下载 版本信息 大小
AAT1231 数据资料DataSheet下载:pdf Rev.V2 2 页
