AAT4290A I/O Expander Load Switches with Serial Control

The AAT4290A and AAT4291A SmartSwitch products are members of Skyworks' Application Specific Power MOSFET (ASPM™) product family. The AAT4290A and AAT4291A are five and three P-channel MOSFETs, respectively, configured for use as a microprocessor I/O expander. Having independent drain outputs and a common source input, they operate with an input voltage ranging from 1.8V to 5.5V, making them ideal for 2.5V, 3.3V, or 5V systems, as well as systems powered by lithium-ion/polymer batteries. Each switch features a 500ns turn-on time. The switch states are controlled by a Simple Serial Control (S2Cwire™) interface which permits ease of control and efficiency of size. The quiescent supply current is very low, typically 4.5μA. In shutdown mode, the supply current is reduced to less than 1μA. The AAT4290A and AAT4291A are offered in a Pb-free, 8-pin SC70JW package specified over the -40°C to +85°C temperature range.

技术特性
  • 1.8V to 5.5V Input Voltage Range
  • 5 or 3 Independent Load Switches
  • S2Cwire Interface
  • 1.1W RDS(ON) Per Switch
  • Low Quiescent Current
  • 4.5μA Typical
  • 0.1μA in Shutdown
  • 40°C to +85°C Temperature Range
  • 8-Pin SC70JW Package
订购信息 Ordering Information
  • AAT4290A
应用领域 APPLICATION
  • Cell Phones
  • I/O Expansion
  • Multiple Low Power Switching
  • Personal Communication Devices
  • Portable Electronic Devices

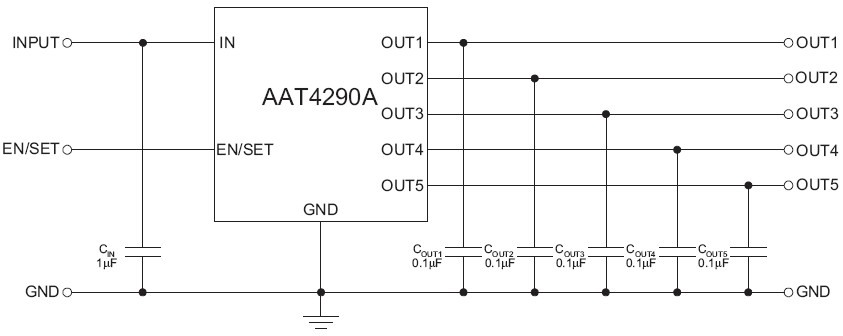

AAT4290A 典型应用

AAT4290A 典型应用

应用技术支持与电子电路设计开发资源下载 版本信息 大小
AAT4290A 数据资料DataSheet下载:pdf Rev.V2 2 页
