AAT5102 2.5W/Ch Stereo Class D Audio Power Amplif

The AAT5102 is a high efficiency, high performance stereo class D audio amplifier. It is designed to operate in a wide supply voltage range from 2.5V to 5.5V and is targeted to deliver up to 2.5W output power to a 4Ω load with× 5V power supply. Efficiency of up to 90.5% makes it ideal for portable applications. The AAT5102 has four adjustable amplifier gains with 6, 12, 18 and 24dB programmed by two external pins. Two shutdown control pins are employed to control the left and right channels independently. The AAT5102 also integrates over-temperature protection circuitry to prevent internal junction temperature over-heating. The AAT5102 is offered in a Pb-free, thermally enhanced, space-saving 1.645mm × 1.645mm 16-pin WLCSP package and in the 3mm × 3mm 16-pin QFN package, and is specified for operation over the -40°C to +85°C ambient temperature range.

技术特性

Wide Supply Voltage Range (2.5V to 5.5V)
 Maximum Battery Life and Minimum Heat
5mA Quiescent Current at 3.6V VDD
<1μA Shutdown Current
Up to 90.5% Efficiency
Output Power at 10% THD+N
2.5W x2 to 4Ω at 5V VDD
1.6W x2 to 8Ω at 5V VDD
High Performance
THD+N of 0.03%, at 5V VDD, 8Ω Load and POUT =
1.0W
SNR of 102dB at 5V VDD, 8Ω Load and 1% THD+N
Shutdown Control
ndependent Control per Channel1
Internal 300kΩ Pull-down Resistors
Filter-less Capability
Four Programmable Gains: 6, 12, 18 and 24dB
Thermal Protection
Excellent PSRR
Built-in Pop-click Suppression Circuitry
1.645mm × 1.645mm 16-Pin WLCSP Package
3mm × 3mm 16-Pin QFN Package

订购信息 Ordering Information

AAT5102

应用领域 APPLICATION

Cellular Phones
MP4s
Notebook Computers
PDAs
Portable DVD Players

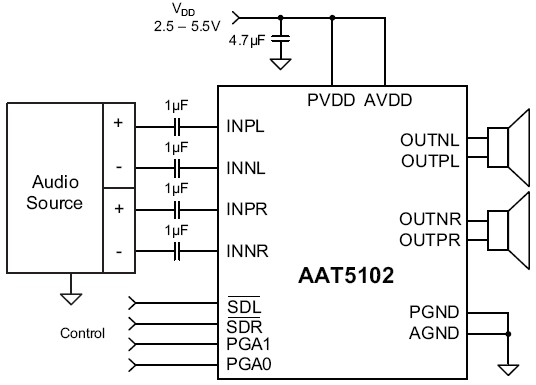

功能框图 Functional Block Diagram
