SE2442L 902 MHz–928 MHz High Power RF Front-End Module
The SE2442L is a high performance, integrated RF Front End Module designed for high power ISM band applications operating in the 902 – 928 MHz frequency band. The SE2442L is designed for ease of use and maximum flexibility, with fully matched 50 Ω input and output, and digital controls compatible with 1.6 – 3.6 V CMOS levels. The RF blocks operate over a wide supply voltage range from 2.0 to 4.8 V allowing the SE2442L to be used in battery powered applications over a wide spectrum of the battery discharge curve.
技术特性
- Integrated PA with 30 dBm output power
- Receive pass through
- Integrated antenna switching
- Single ended 50 Ω Tx & Rx RF interface
- Fast turn-ON / turn-OFF time <1 μsec
- 2.0 V – 4.8 V supply operation
- Sleep mode current <1 μA
- 4 x 4 x 0.9 mm 24 pin QFN
- Pb-free, RoHS compliant and Halogen free
应用领域 APPLICATION
- Smart Meters
- In-home appliances
- Smart thermostats
|
订购信息 Ordering Information
| Part No. |
Package |
Remark |
| SE2442L-S |
24 pin QFN |
Samples |
| SE2442L-R |
24 pin QFN |
Tape & Reel |
| SE2442L-EK1 |
N/A |
Evaluation kit |

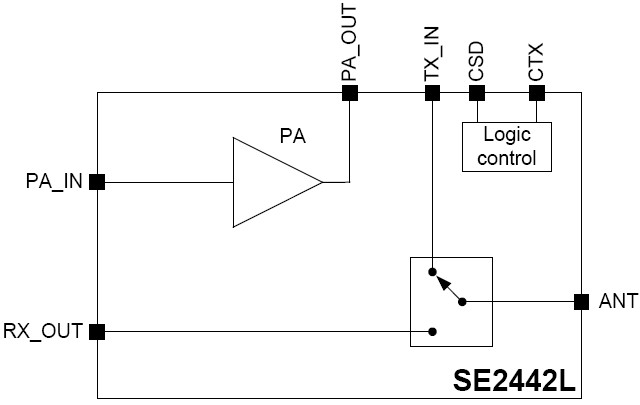

功能框图 Functional Block Diagram
|
