SE5007T 5 GHz Front End Module with Power Detector

The SE5007T is a 5GHz front end module offering high linear power for wireless LAN applications. It incorporates a power detector for control of the output power. The SE5007T offers a high level of integration for a simplified design, providing quicker time to market and higher application board production yield. The device integrates the input match, inter-stage match, a temperature compensated, load insensitive power detector with 20dB of dynamic range, a 3.8GHz notch filter, a T/R switch and LNA. For wireless LAN applications, the device meets the requirements of IEEE802.11a and delivers approximately 17dBm of linear output power. It also features a low linearity mode control to reduce current consumption at low power modes. The SE5007T integrates the reference voltage generator, allowing for a true 1.8V CMOS compatible digital EN (enable) function to turn the power amplifier on and off.

技术特性
  • 5GHz Front End Module with PA, LNA and T/R Switch
  • Integrated power amplifier enable pin (VEN)
  • Buffered, temperature compensated power detector
  • High and Low-Linearity mode
  • 3% EVM, @17dBm, 64 QAM, 54 Mbps
  • 30 dB Typical Gain
  • Lead Free and RoHS compliant, halogen free package
  • 16 pin 3 mm x 3 mm x 0.6 mm QFN, MSL1
应用领域 APPLICATION
  • 5 GHz WLAN (IEEE802.11a/g/n)
  • Access Points, PCMCIA, PC cards
订购信息 Ordering Information
Part Number  Package  Remark
SE5007T  16 Pin QFN  Samples
SE5007T-R  16 Pin QFN  Tape and Reel
SE5007T-EK1  Evaluation Kit  Standard

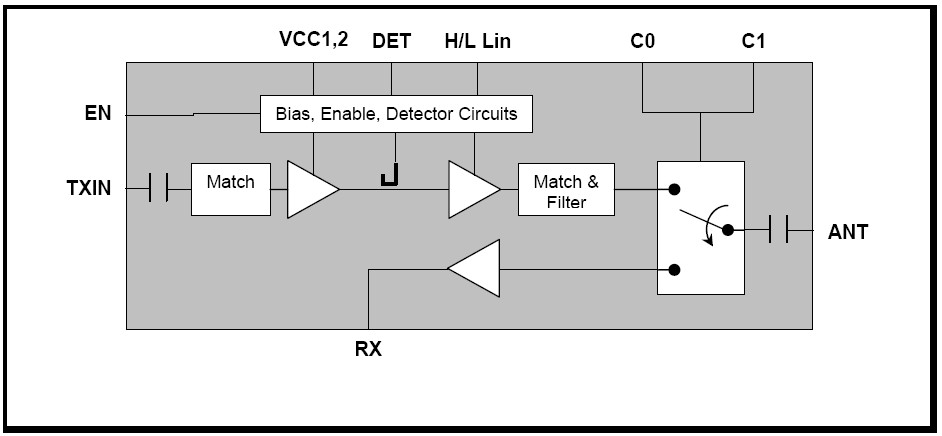

功能框图 Functional Block Diagram

SE5007T 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SE5007T 数据资料DataSheet下载:pdf Rev.V2 2 页
