SE5512L Dual-Band 802.11a/b/g/n Wireless LAN Front-End Preliminary Information

The SE5512L is a complete 802.11a/b/g/n WLAN RF front-end module providing all the functionality of the power amplifiers, filtering, power detector, T/R switch, diplexers, LNA and associated matching. The SE5512L provides a complete 2.4 GHz and 5 GHz WLAN RF solution from the output of the transceiver to the antenna in an ultra compact form factor. Designed for ease of use, all RF ports are matched to 50 Ω to simplify PCB layout and the interface to the transceiver RFIC. The SE5512L also includes a transmit power detector with 20 dB of dynamic range for each transmit chain. Each transmit chain has a separate digital enable control for transmitter power ramp on/off control. The power ramp rise/fall time is less than 0.7 μsec. The device also provides a notch filter from 3.260-3.267 GHz and 3.28-3.89 GHz prior to the input of each 2.4 GHz and 5 GHz power amplifiers, respectively. The SE5512L packaged in 4mm x 4mm x 0.9mm, Halogen free, Lead free, ROHS compliant, MSL 3 QFN package.

技术特性
  • All RF ports matched to 50 Ω
  • Integrated 2.4 GHz PA, 5 GHz PA, T/R switch, 2.5GHz LNA, 5GHz LNA
  • Integrated Power Detector for each TX Chain
  • 19 dBm O/P Power, 802.11b, 11 Mbits, ACPR = 35 dBc
  • 18 dBm @ 3.0 % EVM, 802.11g, 54 Mbits
  • 16 dBm @ 3.0 % EVM, 802.11a, 54 Mbits
  • Single supply voltage: 3.3 V ± 10 %
  • Lead free, Halogen free, RoHS compliant, MSL 1
  • 4mm x 4mm x 0.9mm, QFN Package
应用领域 APPLICATION
  • IEEE802.11b DSSS WLAN
  • IEEE802.11g OFDM WLAN
  • IEEE802.11a OFDM WLAN
  • IEEE802.11n WLAN
  • Access Points, PCMCIA, PC cards
订购信息 Ordering Information
Part Number  Package  Remark
SE5512L  16 Pin QFN  Samples
SE5512L-R  16 Pin QFN  Tape and Reel
SE5512L-EK1  Evaluation Kit  Standard

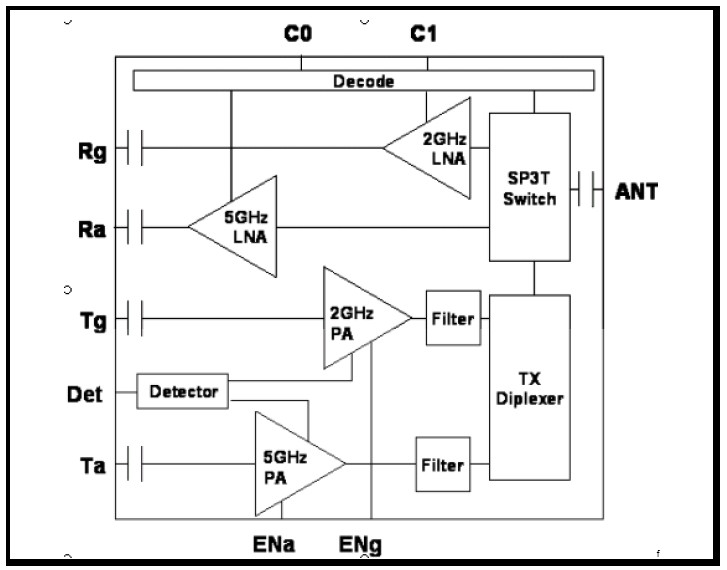

功能框图 Functional Block Diagram

SE5512L 功能框图
