SKY13299-321LF 20 MHz-5 GHz 7 W SPDT Switch

The SKY13299-321LF is a high-power GaAs pHEMT FET I/C Single-Pole, Double-Throw (SPDT) switch. The device is provided in a 3 x 3 mm, 12-pin Quad Flat No-Lead (QFN) package. The SKY13299-321LF is particularly suited for low-cost commercial WiMAX and WLAN applications where low insertion loss, high isolation, and excellent linearity are required.

技术特性

Positive voltage operation: 0/3 to 0/5 V
Low insertion loss: 0.5 dB typical @ 3.5 GHz
High isolation >35 dB @ 3.5 GHz
High P0.1dB of +38.5 dBm @ 3.3 V
Low gate lag process for fast settling time applications
Small, QFN (12-pin, 3 x 3 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY13299-321LF

应用领域 APPLICATION

WiMAX and WLAN systems

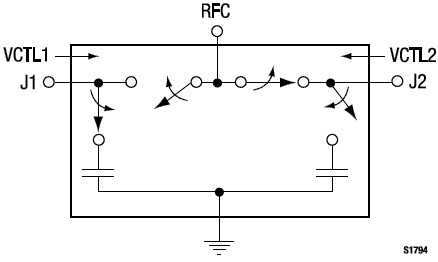

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13299-321LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
