SKY13350-385LF 0.01-6.0 GHz GaAs SPDT Switch

The SKY13350-385LF is a GaAs pHEMT FET single-pole, double-throw (SPDT) switch. The switch may be used in transmit/receive applications by connecting the RF common port (INPUT, pin 6) to either the OUTPUT1 or OUTPUT2 port (pin 2 or 4, respectively) using a low loss path (i.e., a positive voltage applied to either VCTL1 or VCTL2 pins). The switch is “reflective short” on the isolated port. The switch is manufactured in a compact, 1 x 1 mm, 6-pin exposed pad plastic Micro Leadframe Package Dual (MLPD) package.

技术特性

Positive voltage control (0/1.6 V to 0/5.0 V)
Broadband frequency range: 0.01 to 6.0 GHz
Very low insertion loss, 0.35 dB typical @ 3 GHz
High isolation, 25 dB typical @ 3 GHz
Excellent linearity performance, IP0.5dB = +30 dBm with control voltage = 3 V
Ultra-miniature, MLPD (6-pin, 1 x 1 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY13350-385LF

应用领域 APPLICATION

WLAN 802.11 a/b/g networks
WLAN repeaters
ISM band radios
Low power transmit receive systems

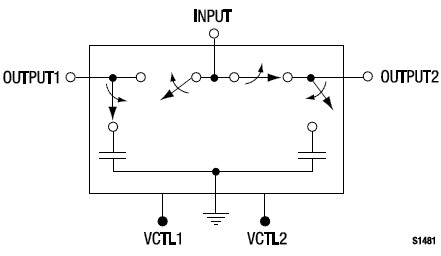

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY13350-385LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
