SKY13383-000 0.1-4.0 GHz SP3T Switch

The SKY13383-001 is a GaAs pHEMT Single-Pole, Triple-Throw (SP3T) switch designed for 2.4 GHz WLAN applications. The SKY13383-001 is manufactured in a compact, 705 x 705 μm, 8-bump Wafer Level Chip Scale Package (WLCSP). The small footprint provides the industry’s smallest PCB area needed to implement an integrated SP3T switch.

技术特性
  • Broadband frequency range: 0.1 GHz to 4.0 GHz
  • Positive control voltages: 2.7 V to 3.6 V
  • Low insertion loss: 0.55 dB typical @ 2.5 GHz
  • High isolation: 24 dB typical @ 2.5 GHz
  • IP0.5dB: +29 dBm typical @ 3 V
  • Small WLCSP (8-bump, 705 x 705 μm) 250 μm ball pitch package
订购信息 Ordering Information
  • SKY13383-000
应用领域 APPLICATION
  • WLAN b/g

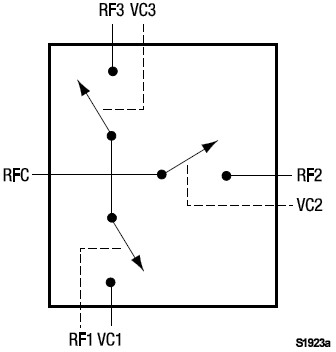

功能框图 Functional Block Diagram

SKY13383-000 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY13383-000 数据资料DataSheet下载:pdf Rev.V2 2 页
