SKY65152-11 2.4-2.5 GHz WLAN Power Amplifier
The SKY65152-11 is a Microwave Monolithic Integrated Circuit (MMIC) Power Amplifier (PA) with superior output power, linearity, and efficiency. These features make the SKY65152-11 ideal for Wireless Local Area Network (WLAN) applications. The high linearity (low EVM) and high efficiency of this device makes it ideal for use in the transmit chain of WLAN access points or modems. The SKY65152-11 is fabricated using SKYWORKS high reliability Heterojunction Bipolar Transistor (HBT) InGaP process, which allows for single supply operation while maintaining high efficiency and good linearity. The device is internally matched and mounted in a 20-pin, 6 x 6 mm Multi-Chip Module (MCM) Surface-Mounted Technology (SMT) package, which allows for a highly manufacturable low cost solution.
技术特性
- EVM < 2.5% for POUT > +27 dBm
- High gain = 32 dB
- Internal RF match with DC block and active bias circuits
- Internal on/off control circuit
- Internal, high dynamic range power detector
- Single DC supply = +5 V
- Operating temperature = –40 °C to +85 °C
- Small, MCM (20-pin, 6 x 6 mm) package (MSL3, 260 C per
JEDEC J-STD-020)
订购信息 Ordering Information
| SKY65152-11 WLAN Power Amplifier |
SKY65152-11 |
TW16-D280-031 |
|
应用领域 APPLICATION
- IEEE 802.11 b/g WLANs
- ISM band transmitters
- WCS fixed wireless
- Wireless access nodes

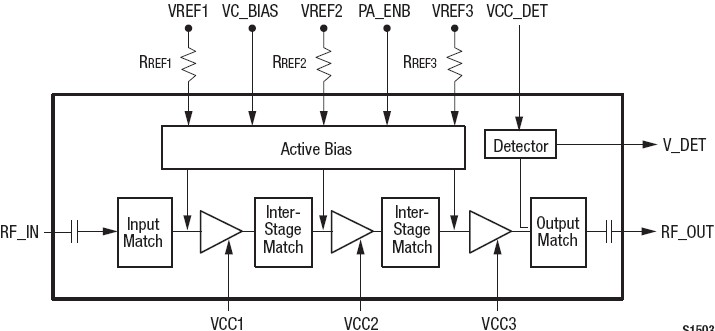

功能框图 Functional Block Diagram
|
