SKY65313-11 900 MHz Transmit/Receive Front-End Module

SKYWORKS SKY65313-11 is a high performance, transmit/receive (T/R) Front-End Module (FEM). The device provides a complete T/R chain with T/R switches. The device transmit chain features +30.5 dBm output power and a 40 percent Power Added Efficiency (PAE) including harmonics filter and switch losses. The device receive chain features a Low Noise Amplifier (LNA) with a 1.4 dB Noise Figure (NF) and 16.6 dB gain. The cascaded NF and gain, taking into account the 0.5 dB insertion loss transmit/receive antenna switch, is 1.9 dB and 16.1 dB, respectively, which make the SKY65313-11 ideal for medium power microwave links such as 900 MHz Industrial, Scientific, and Medical (ISM) band applications.

技术特性

Transmit output power > +30.5 dBm
High efficiency PA
Analog power control
LNA NF <1.4 dB
LNA bypass mode
Integrated control logic
Internal RF match and bias circuits
All RF ports internally DC blocked
Low leakage current shutdown mode
Small footprint, MCM (28-pin, 6 x 6 mm) package (MSL3, 260 °C per JEDEC J-STD-020)

应用领域 APPLICATION

Automated meter reading
Advanced metering infrastructure
ISM systems

订购信息 Ordering Information

SKY65313-11

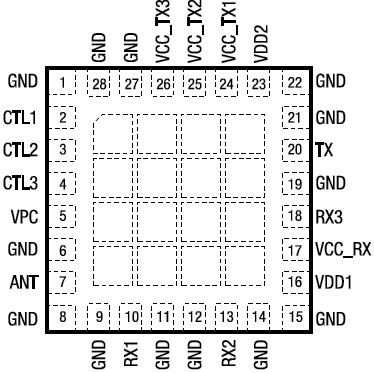

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY65313-11 数据资料DataSheet下载:pdf	Rev.V2	2 页
