SKY65326-11 380-500 MHz Transmit/Receive Front-End Module

SKYWORKS SKY65326-11 is a high-efficiency Front-End Module (FEM) that incorporates a transmit and receive path, and an antenna transmit/receive (T/R) switch. The transmit path consists of a high efficiency Power Amplifier (PA). The PA is implemented using SKYWORKS high reliability Heterojunction Bipolar Transistor (HBT) process and is Class AB biased to provide maximum efficiency with a low spurious output. A high linearity and high isolation Single-Pole Double-Throw (SPDT) switch is used at the common antenna interface between the transmit and receive paths. The receive path is a low insertion loss through-path with input and output ports internally matched to 50 Ω.

技术特性
  • Transmit output power > +30 dBm
  • High PAE = 45%
  • High gain in transmit path: 34 dB
  • High transmit/receive isolation > 30 dB
  • Internal RF match and bias circuits
  • All RF ports internally DC blocked
  • Single DC supply = +3.6 V
  • Small footprint, MCM (12-pin, 8 x 8 mm) Pb-free (MSL3, 260 C
    per JEDEC J-STD-020) SMT package
应用领域 APPLICATION
  • Tetra radio
  • Remote metering
  • GSM
  • WLL transmitters
订购信息 Ordering Information
  • SKY65326-11

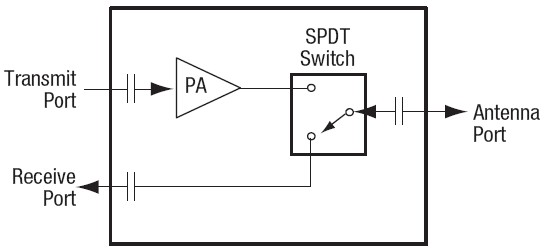

功能框图 Functional Block Diagram

SKY65326-11 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY65326-11 数据资料DataSheet下载:pdf Rev.V2 2 页
