SKY65342-11 450-470 MHz Front-End Module Applications

The SKY65342-11 is a highly efficient Front-End Module (FEM) that incorporates a transmit/receive (T/R) path and an antenna T/R switch. The transmit path consists of a high efficiency power amplifier (PA) followed by a harmonic filter to reject harmonic frequencies. The PA is implemented using SKYWORKS highly reliable Heterojunction Bipolar Transistor (HBT) process and is Class AB biased to provide maximum efficiency with a low spurious output. A high linearity and high isolation single-pole, double-throw (SPDT) switch is used at the common antenna interface between the transmit and receive paths. The receive path is a low insertion loss “through” path with input and output ports internally matched to 50 Ω.

技术特性

Transmit output power > +29 dBm
High gain in transmit path = 32 dB
High transmit/receive isolation > 30 dB
Internal RF match and bias circuits
Single DC supply : +3.6 V
Small, MCM (12-pin, 8 x 8 mm) package (MSL3, 260 􀁱C per
JEDEC J-STD-020)

应用领域 APPLICATION

Tetra radio
Remote metering
GSM450
WLL

订购信息 Ordering Information

SKY65342-11

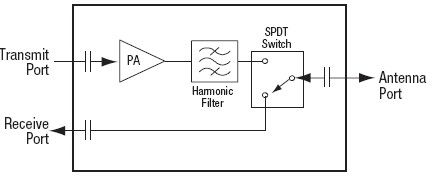

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY65342-11 数据资料DataSheet下载:pdf	Rev.V2	2 页
