SKY65343-11 2.4 GHz Transmit/Receive Front-End Module

SKYWORKS SKY65343-11 is a high-efficiency Front-End Module (FEM) for ZigBee and other 2.4 GHz ISM band applications. The small, 6 x 6 mm Multi-Chip Module (MCM) contains a 2400 to 2500 MHz high-efficiency transmit path and a low-loss bidirectional path. The bidirectional path can be used to directly connect the antenna port to a directional RF port. The transmit path consists of an harmonic filter and high efficiency Power Amplifier (PA) capable of providing +20 dBm of power at the antenna port. Also included is an internal balun to allow use of differential input signals. The bidirectional path contains a high isolation transmit/receive (T/R) switch and balun for low-noise differential output. The bidirectional path can be used for either transmit or receive.

技术特性
  • Transmit output power > +20 dBm
  • Bidirectional path NF < 1.6 dB
  • High efficiency PA
  • Programmable transmit power levels
  • Configurable transmit/bidirectional paths
  • Internal switching and control circuits
  • Internal RF match and bias circuits
  • Single DC supply = 3.3 V
  • Interfaces seamlessly with Ember EM250 and EM260 ZigBee transceivers
  • All RF ports are internally DC blocked
  • Small footprint, MCM (20-pin, 6 x 6 mm) SMT package (MSL3, 260 °C per JEDEC J-STD-020)
应用领域 APPLICATION
  • 2.4 GHz ISM band radios
  • ZigBee® FEMs
  • IEEE 802.15.4 applications
订购信息 Ordering Information
  • SKY65343-11
功能框图 Functional Block Diagram

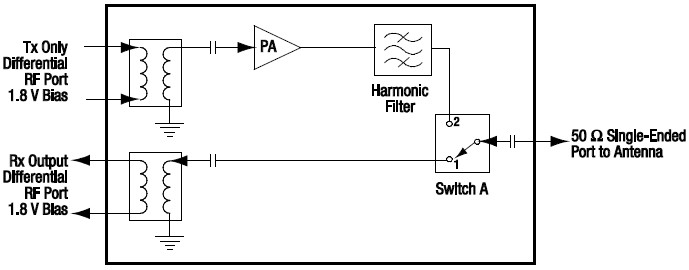

SKY65343-11 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY65343-11 数据资料DataSheet下载:pdf Rev.V2 2 页
