SKY65702-11 Low-Noise Amplifier Front-End Module with GPS/GNSS Pre-Filter

The SKY65702-11 is a Front-End Module (FEM) with an integrated Low Noise Amplifier (LNA) and pre-filter designed for Global Positioning System/Global Navigation Satellite System (GPS/GNSS) receiver applications. The device provides high linearity, excellent gain, a high 1 dB Input Compression Point (IP1dB), and a superior Noise Figure (NF). The LNA is fabricated using advanced GaAs pHEMT technology. The GPS pre-filter provides the low in-band insertion loss and excellent rejections for the cellular, PCS, and WLAN frequency bands. The SKY65702-11 uses Surface Mount Technology (SMT) in the form of a 2.5 x 2.0 mm Multi-Chip Module (MCM) package, which allows for a highly manufacturable and low-cost solution.

技术特性

Small signal gain: 13.5 dB typical
Low Noise Figure: 1.8 dB typical
IP1dB: –5.6 dBm
Low current consumption
Input/output impedance internally matched to 50 Ω
Single DC supply: 1.8 to 3.6 V
Minimal number of external components required
Small, MCM (8-pin, 2.5 x 2.0 mm) package (MSL3, 260 °C per JEDEC J-STD-020)

订购信息 Ordering Information

SKY65702-11

应用领域 APPLICATION

GPS/GNSS radio receivers

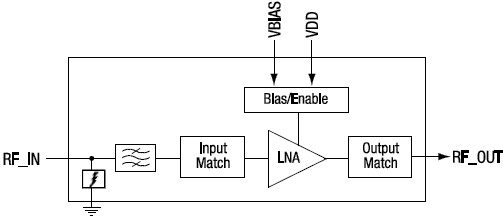

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY65702-11 数据资料DataSheet下载:pdf	Rev.V2	2 页
