SKY67001-396LF 0.6-1.2 GHz High Linearity, Active Bias Low-Noise Amplifier
The SKY67001-396LF is an ultra Low-Noise Amplifier (LNA) intended for 2.4 GHz wireless receiver applications. Its industry-leading Noise Figure (NF), together with high linearity, makes it ideal as a first-stage LNA in 802.11b,g Wireless Local Area Network (WLAN) radios. Operating with a single supply voltage, the SKY67001-396LF consumes only 12 mA of current. The device includes a shutdown mode to save power when the receiver is inactive. The tiny package footprint of the SKY67001-396LF, requiring only four external components, enables the industry’s smallest PCB area needed to implement a 2.4 GHz LNA.
技术特性
- Extended operating temperature range: –40 °C to +100 °C
- Low Noise Figure: 0.6 dB @ 0.9 GHz
- Excellent IIP3 performance: +23 dBm @ 0.9 GHz
- Gain: 17.5 dB @ 0.9 GHz
- Adjustable supply current
- Integrated enable circuitry
- Temperature and process-stable active bias
- Miniature DFN (8-pin, 2 x 2 mm) package (MSL1 @ 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
| SKY67001-396LF LNA |
SKY67001-396LF |
SKY67001-396LF-EVB |
|
应用领域 APPLICATION
- GSM, CDMA, WCDMA, TD-SCDMA cellular infrastructure
- Ultra low-noise systems
- Balanced, single-ended low-noise amplifier designs

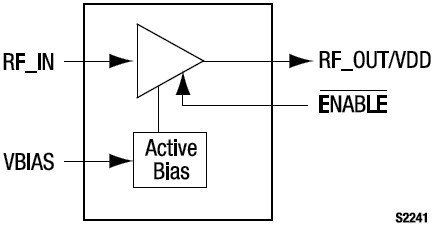

功能框图 Functional Block Diagram
|
