FLI30x02 Single-chip analog TV processor

The FLI30x02 ICs are highly integrated solutions for LCD TV and Digital Audio Video applications. These solutions are capable of meeting global market requirements for: video and audio decoding and processing, Sound IF demodulation, and HDMI input support. It provides Faroudja DCDi Edge suite for advanced video and color processing.

The chip incorporates a high-speed triple 10-bit ADC that can capture and process both video (SDTV or HDTV) and graphics streams. It has a highly programmable video front-end supporting multiple inputs and connection formats such as RGB, YPrPb, S-Video, CVBS, and SCART; multi-standard video decoder (NTSC, PAL, SECAM, and all sub formats); and global VBI standards and services support via VBI Slicer. The embedded microprocessor and OSD enable full system control without external devices.

The chip supports worldwide TV audio standard demodulation (SIF) including digital audio (NICAM). It also supports analog line in, line outputs, loudspeaker, sub woofer, and headphones. The audio DSP supports high end audio processing and enhancement. In addition, I2S or SPDIF input and output ports with digital processing amplifier enable a full digital processing pipe for audio thereby supporting smaller area and power for constrained applications.

HDMI integration is beneficial; it allows both video and audio processing including 5.1 CH to 2 CH audio conversions. The DCDi Edge suite of features, which include Adaptive Contrast and Color (ACC), ensure full dynamic video range support. The ACM 3D enables color manipulation for subtle changes in color to improve the image. The chip can also support DTV front-end with its digital video and audio input ports, thereby ensuring signal integrity due to full digital processing.

技术特性

Triple 10-bit ADC
2D video decoder
HDMI Rx (in case of FLI30602H)
Programmable digital input port (8/16 bits in FLI30602H and 24 bits in FLI30502)
Faroudja DCDi Edge® image enhancement suite
ACM-3D
OSD controller
Embedded microprocessor
VBI slicer
Worldwide SIF audio demodulator
Audio processing
Advanced audio enhancement
Digital audio support
I2S, SPDIF input
I2S, SPDIF output
Loud speaker, sub woofer, and headphone
Analog line in, microphone in, and line out
Tuner noise reduction

应用领域

LCD TVs
Portable or handheld TVs

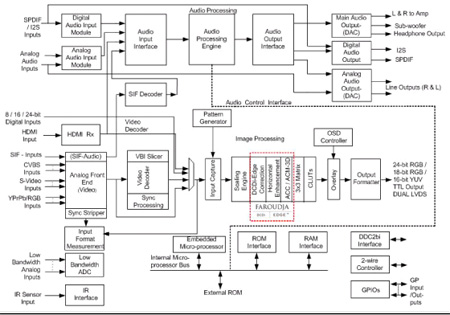

功能框图

FLI30x02 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
FLI30602H-AC	NRND			PQFP 256 28x28x3.4	Tray		FLI30602H-AC
FLI30502-AC	NRND			PQFP 256 28x28x3.4	Tray		FLI30502-AC

DATA BRIEF

描述	版本	大小
FLI30x02 :Single-chip analog TV processor	1	203KB

FLYERS

描述	版本	大小
FLTV301008 ：Single-chip analog TV processor	1.0	59KB
Faroudja Video Optimized calibration program	1.0	1066KB
