STL80N75F6 N-channel 75 V, 0.0051 Ohm, 18 A STripFET(TM) VI DeepGATE(TM) Power MOSFET in PowerFLAT(TM) 5x6 package
This device is an N-channel Power MOSFET developed using the 6thgeneration of STripFET™ DeepGATE™ technology, with a new gate structure. The resulting Power MOSFET exhibits the lowest RDS(on)in all packages
技术特性
- Low gate charge
- Very low on-resistance
- High avalanche ruggedness
应用领域
|

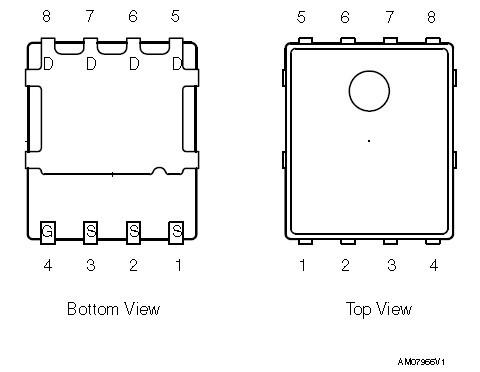

内部原理图
 |
STL80N75F6 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| STL80N75F6 |
Active |
|
1000 |
PowerFLAT 5x6 |
Tape And Reel |
|
STL80N75F6 |
DATASHEET
| 描述 |
版本 |
大小 |
| STL80N75F6 :DS7208: N-channel 75 V, 0.0051 Ω, 18 A, PowerFLAT™ 5x6 STripFET™ VI DeepGATE™ Power MOSFET |
2 |
512KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN1703: Guidelines for using ST's MOSFET smd Packages |
1 |
760KB |
