STV7623 480 output high-voltage gate driver

The STV7623 is a 1-bit x 480 shift register with dual rail high voltage/medium current output, with global blank and polarity control.

The maximum shift frequency starts from 1 MHz for a 1.8 V type input signal, up to 10 MHz for a 3.3 V type input signal. This generic device can be used for segmented/dot matrix electroluminescent displays to drive an array of organic electronic transistors, or for technologies related to e-Paper/e-Reader/digital signage solutions.

The device can be daisy-chained for various display resolutions

技术特性

2-level high voltage output gate driver
480 channels with -40/+35 mA source/sink output current capability
75 V output swing within +/- 45 V limits
3.0 to 3.6 V digital power supply
1.8 V CMOS input signal compatibility
Selectable 480 or 400 outputs
Direct input to bidirectional shift registers
Selectable polarity and blanking function
High voltage BCD process technology
Bumped dice in tray
Output stage similar to STV7622
PCB-less compatible dice

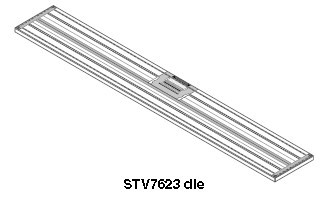

管脚定义图

STV7623 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
STV7623WPB3	Active			GOLD BUMPED DICE	Tray	-20 °C-70 °C	STV7623WPB3

DATASHEET

描述	版本	大小
STV7623 :DS7265: 480 output high-voltage gate driver	1	468KB
