TSL1014 14 + 1 channel buffers for TFT - LCD panels

The TSL1014 is composed of 14 + 1 channel buffers which are used to buffer the reference voltage for gamma correction in thin film transistor (TFT) liquid crystal displays (LCD).

One "COM" amplifier is able to deliver high output current value, up to ±100mA. Amplifiers A and B feature positive single supply inputs for common mode voltage behavior. The amplifiers C to N inclusive, and the COM amplifier, feature negative single-supply inputs and are dedicated to the highest and lowest gamma voltages.

The TSL1014 is fully characterized and guaranteed over a wide industrial temperature range (-40 to +85° C).

技术特性

Wide supply voltage: 5.5 V to 16.8 V
Low operating current: 6 mA typical at 25° C
Gain bandwidth product: 1 MHz
High current com amplifier: ±100 mA output current
Industrial temperature range: -40° C to +85° C
Small package: TQFP48
Automotive qualification

应用领域

TFT liquid crystal display (LCD)

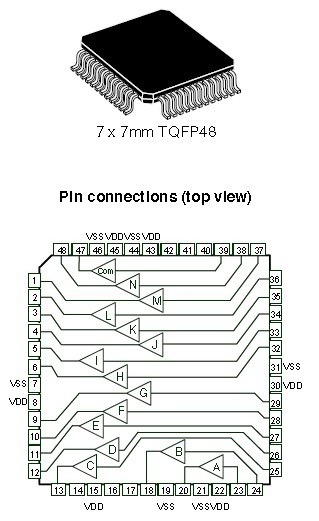

管脚定义图

TSL1014 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
TSL1014IYFT	Active	1.101	1000	LQFP 48 7x7x1.4	Tape And Reel	-40 °C-85 °C
TSL1014IFT	Active	0.918	1000	LQFP 48 7x7x1.4	Tape And Reel	-40 °C-85 °C

DATASHEET

描述	版本	大小
TSL1014 :DS4372: 14 + 1 channel buffers for TFT-LCD panels	6	286KB
