MAX8215:±5V, ±12V (±15V) Dedicated Microprocessor Voltage Monitors

The MAX8215 contains five voltage comparators; four are for monitoring +5V, -5V, +12V, and -12V, and the fifth monitors any desired voltage. The MAX8216 is identical, except it monitors ±15V supplies instead of ±12V. The resistors required to monitor these voltages and provide comparator hysteresis are included on-chip. All comparators have open-drain outputs. These devices consume 250µA max supply current over temperature.

Key Features
  • 4 Dedicated Comparators plus 1 Auxiliary Comparator
  • 5V Dedicated Comparator Has ±1.25% Accuracy
  • -5V, +12V, -12V, +15V, -15V Dedicated Comparators Have ±1.5% Accuracy
  • Overvoltage/Undervoltage Detection or Programmable Delay Using Auxiliary Comparator
  • Internal 1.24V Reference with ±1% Initial Accuracy
  • Wide Supply Range: 2.7V to 11V
  • Built-In Hysteresis
  • 250µA Max Supply Current Over Temp.
  • Independent Open-Drain Outputs
  • All Precision Components Included

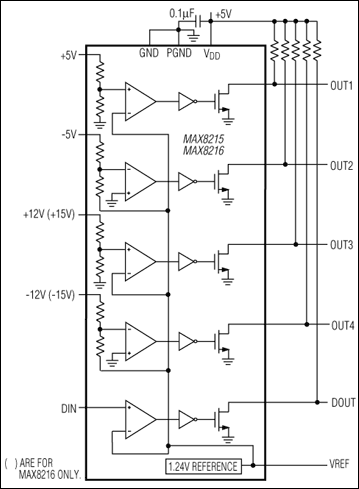

MAX8215, MAX8216: Typical Operating Circuit
MAX8215, MAX8216: Typical Operating Circuit
Applications/Uses
  • Data Acquisition Systems
  • Industrial Controllers
  • Industrial Equipment
  • Microprocessor Voltage Monitor: +5V, -5V, +12V, -12V Supply Monitoring (MAX8215), +5V, -5V, +15V, -15V Supply Monitoring (MAX8216)
  • Mobile Radios
  • Overvoltage/Undervoltage Detection with Uncommitted Comparator
  • Portable Instruments
DataSheet
titleDownload file
MAX8215-MAX8216 Data SheetMAX8215-MAX8216.pdf
Parametrics
Part NumberMonitored VoltagesInterfaceReset Thresh.
(V)
Reset OuttRESETWatchdog FeatureSupervisor FeaturesICC
(µA)
Package/PinsBudgetary
Price
minmaxSee Notes
MAX82155Factory Fixed3.3 to 5.5
>=5.5
Active High
Active Low
Open Drain
85ms to 300msNo WatchdogOvervoltage/Window Monitor250CDIP(N)/14
PDIP(N)/14
SOIC(N)/14
$2.67 @1k
MAX8216CDIP(N)/14
PDIP(N)/14
SOIC(N)/14
$2.75 @1k
