FLI7512 Freeman Cube - H.264 iDTV SoC 120 Hz 3DTV on-a-chip

The FLI7512 is a revolutionary new iDTV SoC that integrates two highly successful, market-proven subsystems: STi710x digital/front-end processing and multi-format audio/video decoding from the STB market, and Faroudja video/back-end processing from the TV market. The FLI7512 is a high-performance, state-of-the-art SoC that can power DTT/cable/satellite/IPTV iDTV designs for worldwide deployment. From the software compatibility extending from the mature STi710x STAPI layer to the extensive video processing, tuning, and tools from Faroudja Labs, the FLI7512 is the ideal solution for addressing the next generation of iDTV design requirements.

The FLI7512 is the first in a family of scalable performance and software-compatible SoCs that address mainstream and performance segments of the iDTV market. Notably, it is the first one-chip 3D solution at 120 Hz within ST’s exceptional iDTV SoC portfolio. The FLI7512 supports all connectivity requirements to 3D sources and all mandatory 3D formats defined in the HDMI 1.4b specification.

Additionally, the FLI7512 implements the latest generation of Faroudja Video Optimized technologies, which allow a high degree of customization for TV OEMs. Key technology improvements in this area include 14-bit color and contrast processing, upgraded sharpness, upgraded temporal noise reduction, and new MPEG noise reduction.

The FLI7512, with its high performance CPU, A/V decode, graphics engine, and extensive network interface capability, enables 3DTVs to deliver rich applications for convenient access to multimedia content, both from within the home, as well as from the web.

技术特性

ST231 @ 450 MHz for advanced high definition video decoding (H.264/VC-1/MPEG2/…) --> Worldwide Digital Terrestrial Television (DTT) broadcast video standards compatibility
Dual ST231 @ 450 MHz for advanced multi-channel audio decoding (MPEG-1/2, MP3, WMA, Dolby® Digital/Dolby Digital+, AAC/AAC+/…) --> Worldwide DTT broadcast audio standards compatibility
Dual ST40 CPU @ 450 MHz (delivers 1600 DMIPS) runs Linux and OS21 --> One CPU (800 DMIPS) fully dedicated to application and user interface
Faroudja® video processing for Main Video --> Vivid picture quality for the consumer
Full support for HDMI 1.4b mandatory 3DTV input formats
3DTV on-a-chip 60L60R (frame-sequential) and 120 Hz (line-interleaved)
Includes 3D format converter
Award-winning DCDi, MADi technologies --> Crystal-clear rendering on 1080p displays
14-bit Advanced Color Management (3D) and Contrast processing --> Ultimate video quality for OEMs and consumers
Worldwide analog audio demodulator
Physical graphics planes enabling rich, easy-to-use user I/Fs
Advanced security features supporting embedded CA as well as CI/CI+ and DRM applications--> Copy protection support, including HDCP, AES/DES/TDES, Rovi™
48-bit (3x16 or 1x16+1x32) DDR2/DDR3 1066 Mbps DRAM I/F --> Performance and flexibility with DRAM ICs
Quad high-speed 10-bit LVDS outputs --> Convenient connectivity to panel TCON
Board Support Package (BSP) API accelerates time to market

应用领域

Connected, high-performance, and mainstream iDTVs with support for 120 Hz 3DTVs
Multi-region, single footprint for DVB/ATSC/DTMB/ISDB

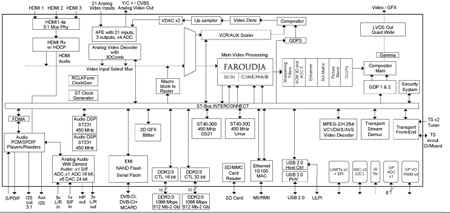

功能框图

FLI7512 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
FLI7512-EABC	Active			PBGA 956 35x35x2.3	Tray		FLI7512-EABC
FLI7512-EBBB	Active			PBGA 956 35x35x2.3	Tray		FLI7512-EBBB

DATA BRIEF

描述	版本	大小
FLI7512 :DB1077: Freeman Cube - H.264 iDTV Soc 120 Hz 3DTV on-a-chip	7	190KB
